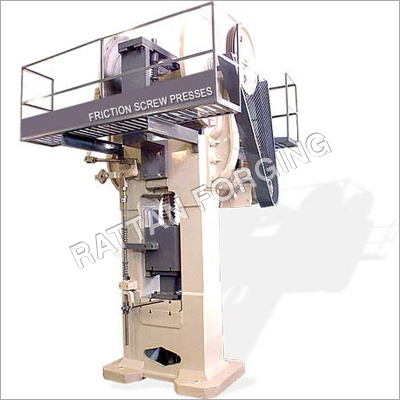

Friction Screw Press

Friction Screw Press
Friction Screw Press
Product Code : 12
Product Description

Since our inception, we are engaged in presenting a sophisticated array of Friction Screw Press to our esteemed clients. Depending upon the tooling employed on a press, it meets different needs of non-ferrous stampings, forgings and piercing operations. One can use these presses for planer ship and finishing of different types of articles that are produced by casting or on power press. Clients can avail these presses from 30 to 500 tones of capacity, as per their requisite industry requirements. In addition to this, our range provides 1/2" stroke with full press force that helps in easy ejection arrangements against specific requirements of customers. Moreover, our Friction Screw Press can be availed from us in various customized options.


Specifications Of Friction Screw Presses Steel Body Down Stroke

model

RFSP-50

RFSP-100

RFSP-200

RFSP-300

RFSP-400

RFSP-500

capacity ( in tons )

50 TONS

100 TONS

200 TONS

300 TONS

400 TONS

500 TONS

dia of screw

4"

5"

6 1/2"

8"

9 1/2"

11"

stroke of press

8"

11"

14"

16"

18"

20"

stroke per minute

40''

25''

20''

15''

10''

10''

table to slide (max.)

14"

18"

22"

25"

28"

32"

table to slide (min.)

6"

7"

8"

9"

10"

12"

size of table (front)

15"

19"

22"

25"

28"

30"

size of table (side)

14"

18"

21"

24"

28"

30"

distance table to guides

6"

8"

10

12"

14"

16"

distance between columns

16"

20"

23"

26"

30"

32"

distance between guides

12"

14"

17"

19"

22"

24"

bore in table

3"

4"

5"

6"

6"

6"

bore in ram (shank dia)

1 1/2"

2"

2 1/2"

3"

3"

4"

dimensions of ram

12" x 12"

14" x 14"

17" x 17"

19" x 19"

21" x 22"

24" x 24"

t slots in table

5/8''

5/8''

3/4''

1"

1"

11/4"

t slots in ram

5/8''

5/8''

5/8''

3/4''

1"

1"

h.p. required

7.5 H.P.

10 H.P.

20 H.P.

30 H.P.

40 H.P.

50 H.P.

r.p.m.

960

960

960

960

960

960

approx. weight in kg.

3000 kg.

5000 kg.

9000 kg.

14000 kg.

17000 kg.

23000 kg.

height

9 ' - 4"

10' - 4"

12' - 4"

14' - 6"

15' - 6"

17'
