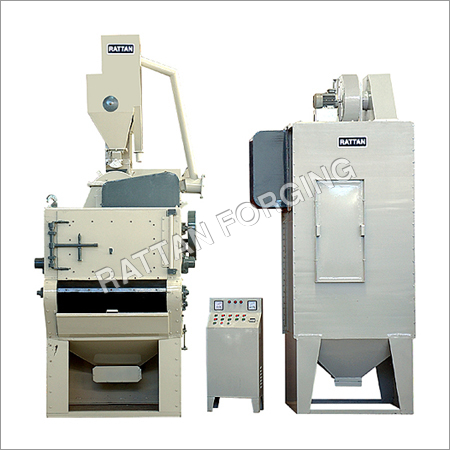

Shot Blasting Machine Tumble Type

Shot Blasting Machine Tumble Type
Shot Blasting Machine Tumble Type
Product Code : 06
Product Description

With the help of our highly experienced and qualified professionals, we are manufacturing and supplying low power consuming Shot Blasting Machine Tumble Type. These tumble type machines are fabricated by the engineers using premium quality raw material and components that are sourced from the certified vendors of the market. Our offered Shot Blasting Machine Tumble Type is widely appreciated by our countrywide customers for its durability, sturdy construction and excellent functioning.

Technical specifications:


Model

Chamber
Size

Machine
Dimensions
LxWxH

Conveyor
Drive

Rotor
Drive
Motor

Blower
Drive
Motor

Elevator
Drive
Motor

Rotor
Dia

Batch
Capacity

WT.OF
Machine
(Approx)

Type of dust
Collector

RSHB-2027

20"x27"

9'x5'x12'

1.0 H.P.

5.0. H.P.

3.0. H.P.

1.0 H.P

305 MM

150-200 kg

2500 kg.

Dry type

RSHB-2736

27"x36"

10'x6'x13'

1.0 H.P.

7.5 H.P.

3.0 H.P.

1.0 H.P.

380 MM

300-350 kg.

4000 kg.

Dry typer

RSHB-3642

36"x42"

11'x7'x15'

2.0 H.P.

10 H.P.

5.0 H.P.

2.0 H.P.

480 MM

850-900 kg

6000 kg

Dry type
